Trek Wahoo 24 Trail Kids Bike - One Size - White
no reviews for this product. Login to place a review.
Overview

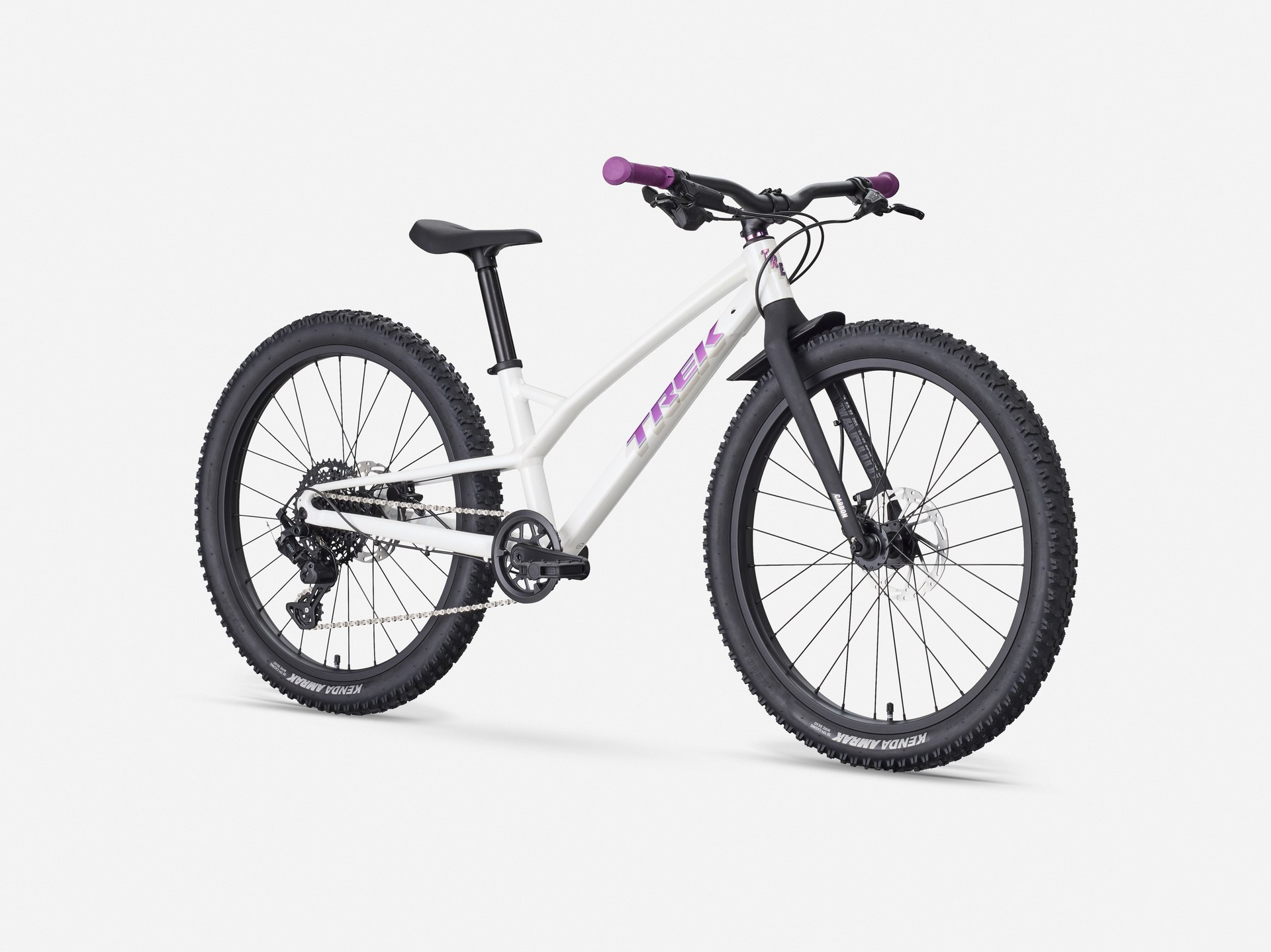

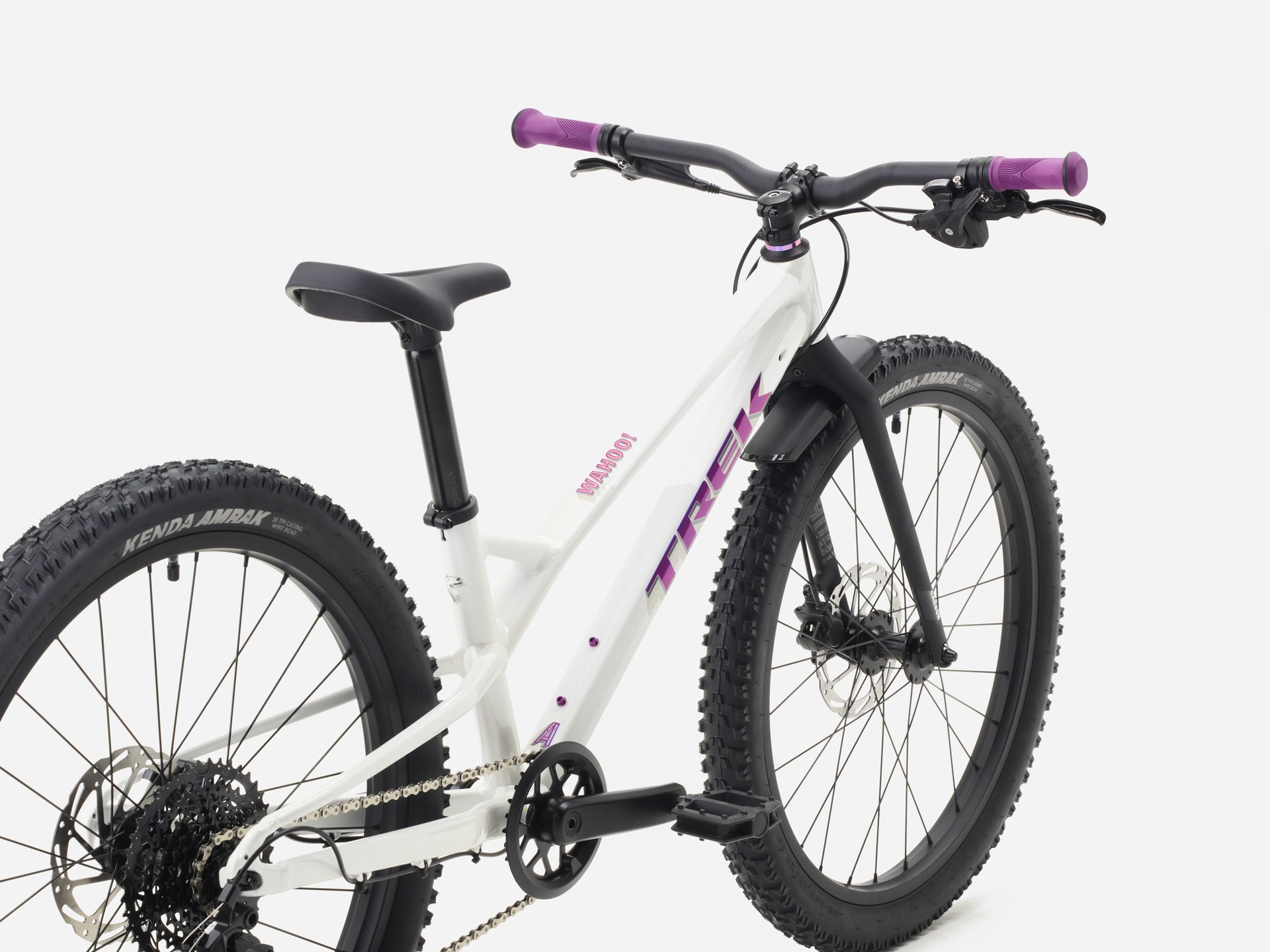

The Trek Wahoo 24 Trail is a lightweight kids bike for riders ready to take on dirt paths and trails. Its Alpha Silver Aluminum frame and rigid carbon fork keep handling responsive, while a wide-range 1x9 drivetrain supports climbs without adding a front shifter. Hydraulic disc brakes deliver dependable control, and 24x2.20-inch trail tyres provide confident grip. The frame is also compatible with an internally routed 31.6 mm dropper post for future upgrades.
- Lightweight aluminum frame: The Alpha Silver Aluminum frame is durable and easy for a developing rider to manoeuvre.

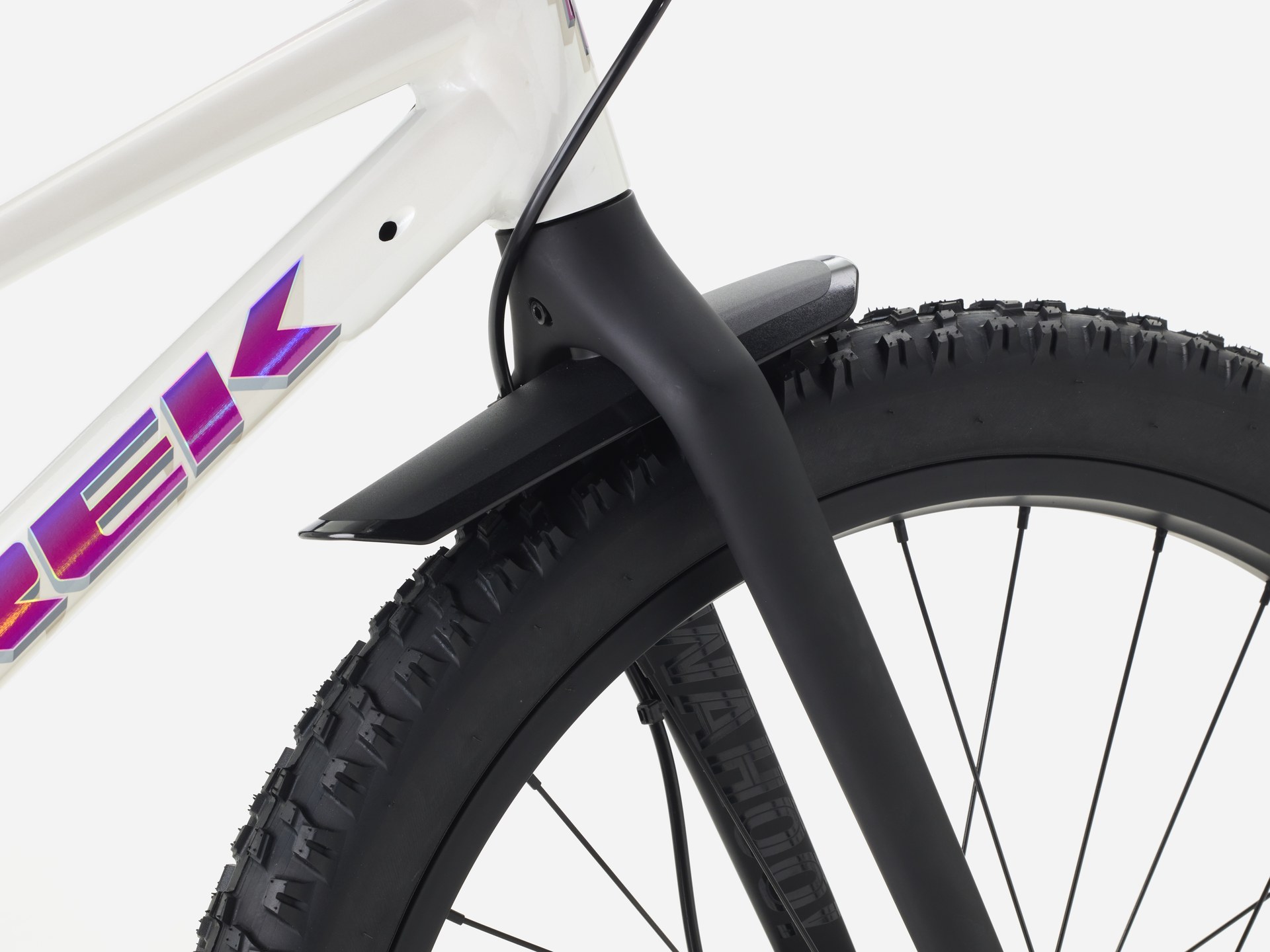

- Rigid carbon fork: The carbon fork reduces weight, helps absorb trail vibration, and includes a front fender.

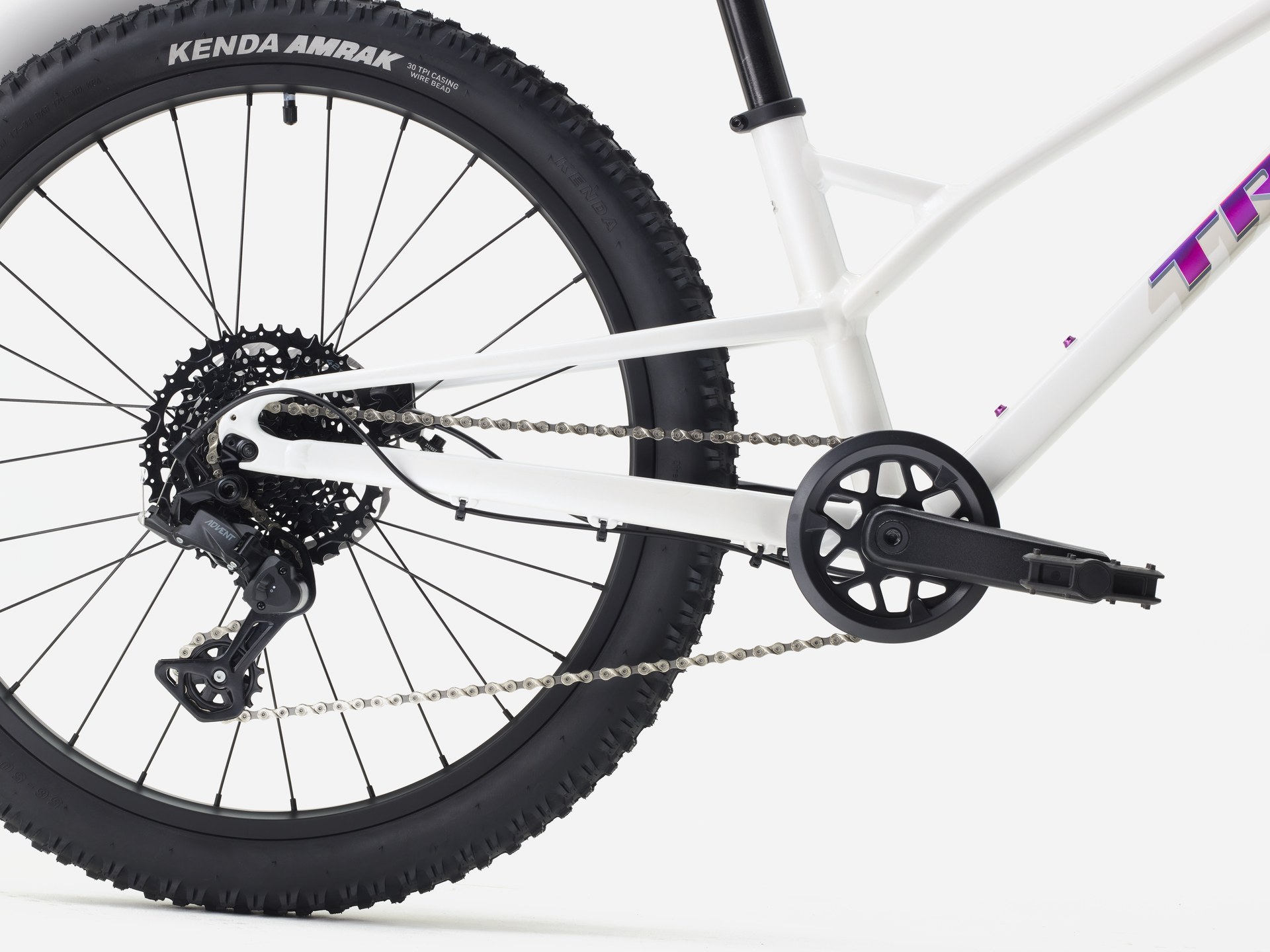

- Wide-range 1x9 gearing: A microSHIFT Advent drivetrain pairs one front chainring with an 11-42 cassette for straightforward shifting and useful climbing range.

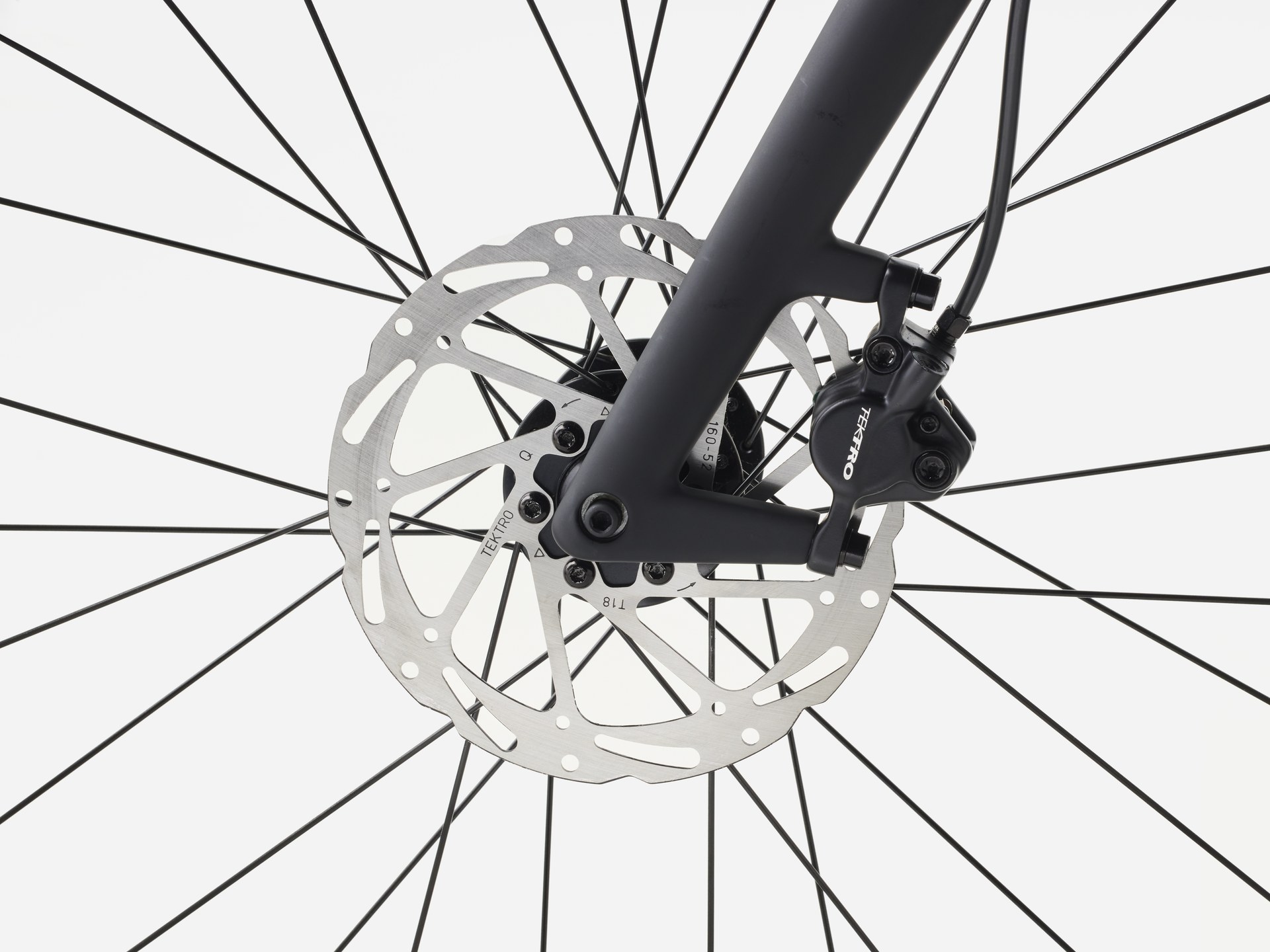

- Hydraulic disc brakes: Tektro hydraulic brakes with 160 mm rotors provide controlled stopping on flats and descents.
- Kid-friendly controls: Compact grips and a thumb-operated trigger shifter are designed to be manageable for smaller hands.
- Dropper-post compatible: Internal routing supports a 31.6 mm dropper post upgrade when a rider is ready for more technical terrain.
In-store pickup: Submit an order request online and our team will confirm availability. Trek bicycles are assembled, inspected, adjusted, and fine-tuned by Uncle Bill's before in-store handover.
Details
- Frame Size
- One Size
- Collection
- Wahoo
- Product Type
- Kids Bicycle
- Model
- Wahoo 24 Trail
- Colour
- White
- Wheel Size
- 24 in
- Gender
- Boys
- Material / Finish
- Alpha Silver Aluminum
Specifications
Frameset
- Frame
- Alpha Silver Aluminum, 24-inch
- Fork
- Wahoo 24-inch carbon, post-mount disc brake, ThruSkew 5 mm QR
- Headset
- Integrated, sealed cartridge bearings
Wheels and tyres
- Rim
- 24-inch alloy, 28-hole
- Front hub
- Formula DC-20 alloy, 6-bolt, 100 mm
- Rear hub
- Formula DC-22 alloy, 6-bolt, Shimano 8/9/10-speed freehub, 135x5 mm
- Tyres
- Kenda Amrak, 30 tpi, 24x2.20 in
- Maximum tyre size
- 24x2.40 in with or without fenders
Drivetrain
- Shifter
- microSHIFT Advent Quick Trigger Pro SL-M6295, 9-speed
- Rear derailleur
- microSHIFT Advent RD-M6195M
- Cassette
- microSHIFT Advent H093, 11-42, 9-speed
- Crank
- Alloy, 30T steel chainring with guard, 127 mm
- Chain
- KMC X9
Brakes and contact points
- Brakes
- Tektro HD-J285 hydraulic disc
- Rotors
- Tektro 160 mm, 6-bolt, front and rear
- Handlebar
- Bontrager alloy, 31.8 mm clamp, 20 mm rise, 600 mm width
Weight and capacity
- Published weight
- 10.50 kg / 23.15 lb
- Maximum total weight
- 80 kg / 175 lb combined bicycle, rider, and cargo
Sizing & fit
Use rider height and inseam as starting points when choosing a frame. Riders near the overlap between two sizes may be comfortable on either, depending on proportions and riding preference. Visit Uncle Bill's if you would like help comparing sizes.
| Frame size | Recommended rider height | Inseam | Wheel size |
|---|---|---|---|
| One Size | 130-150 cm / 4 ft 3 in-4 ft 11 in | Not published | 24 in |
