Trek

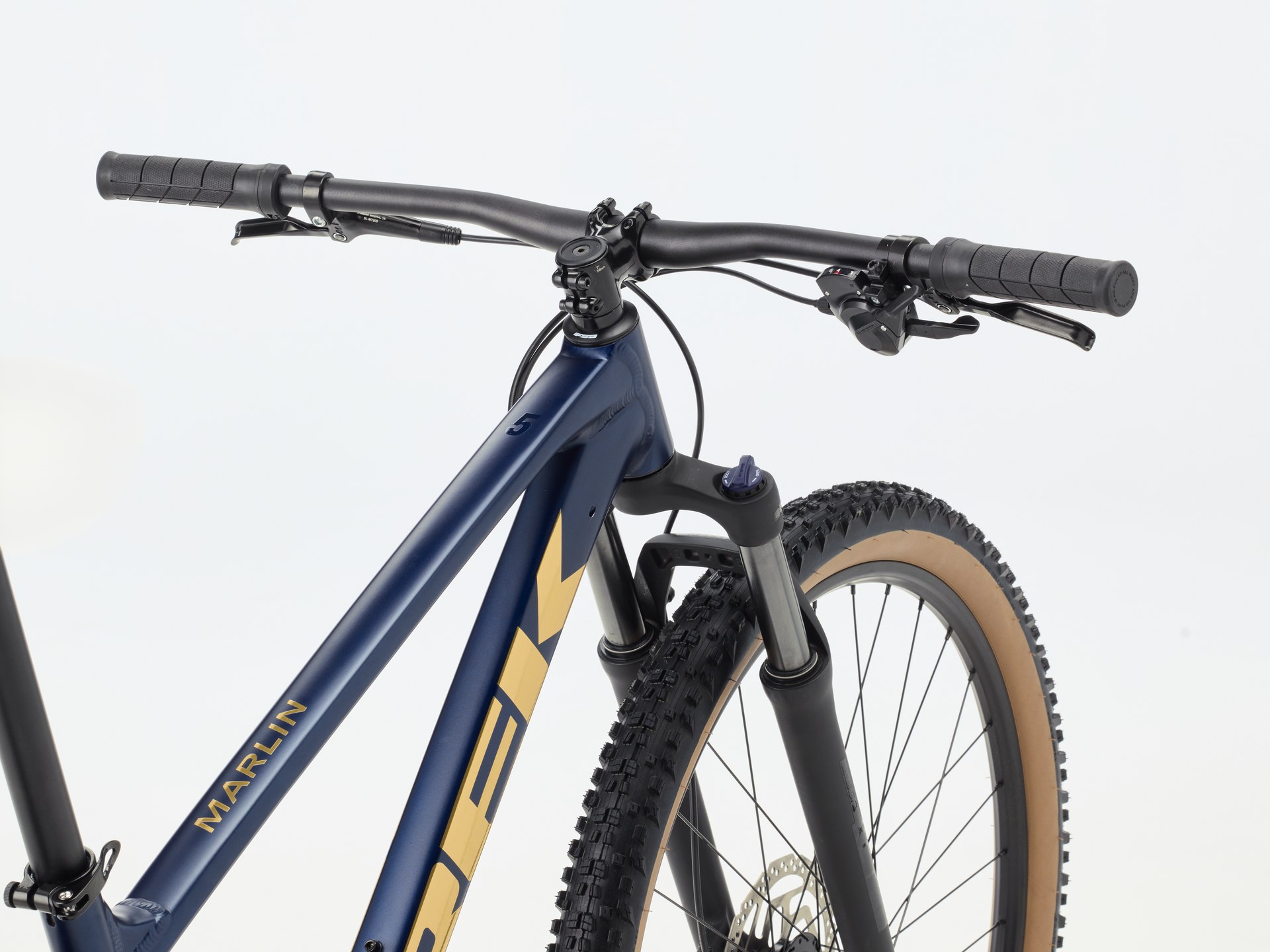

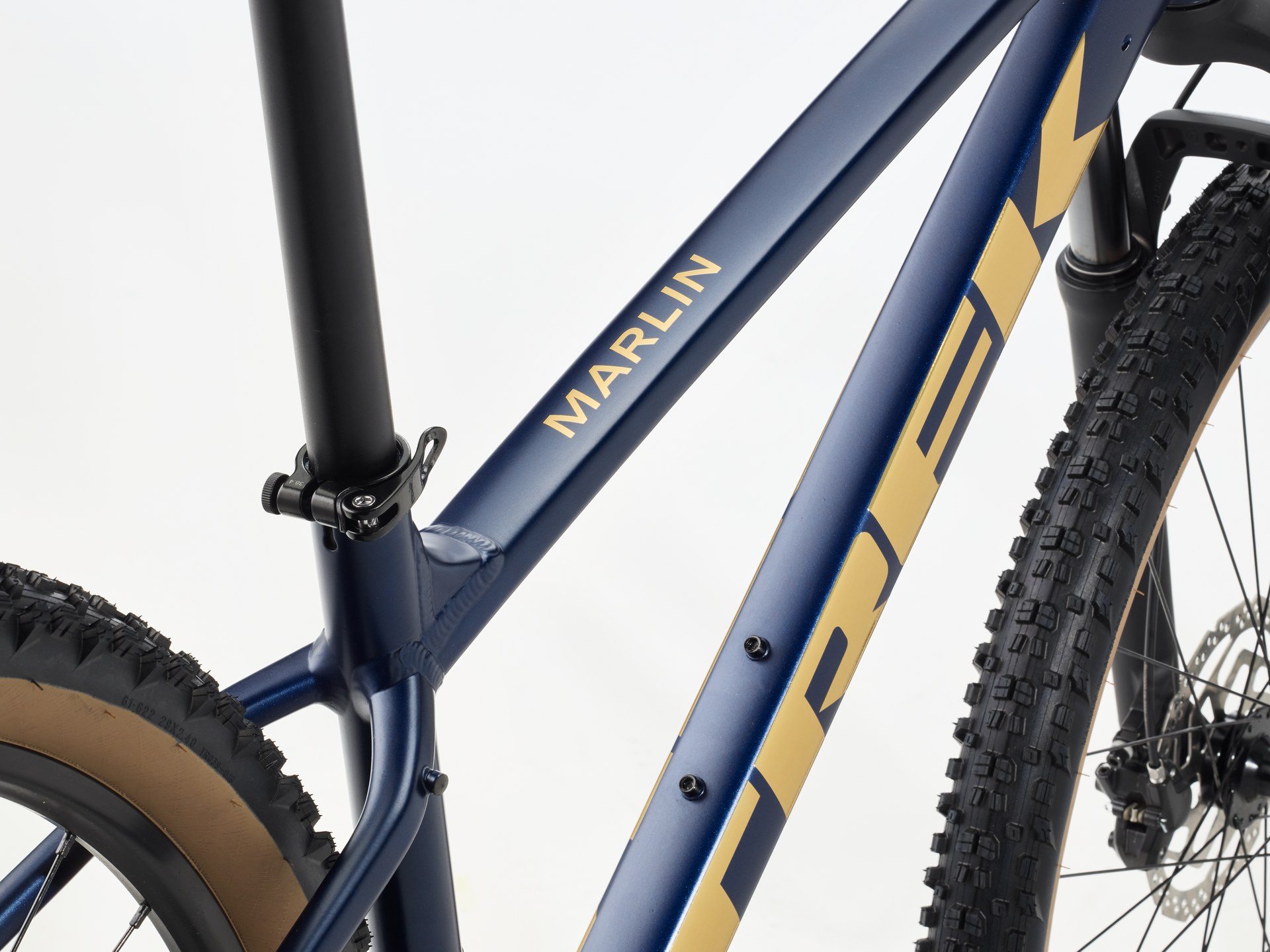

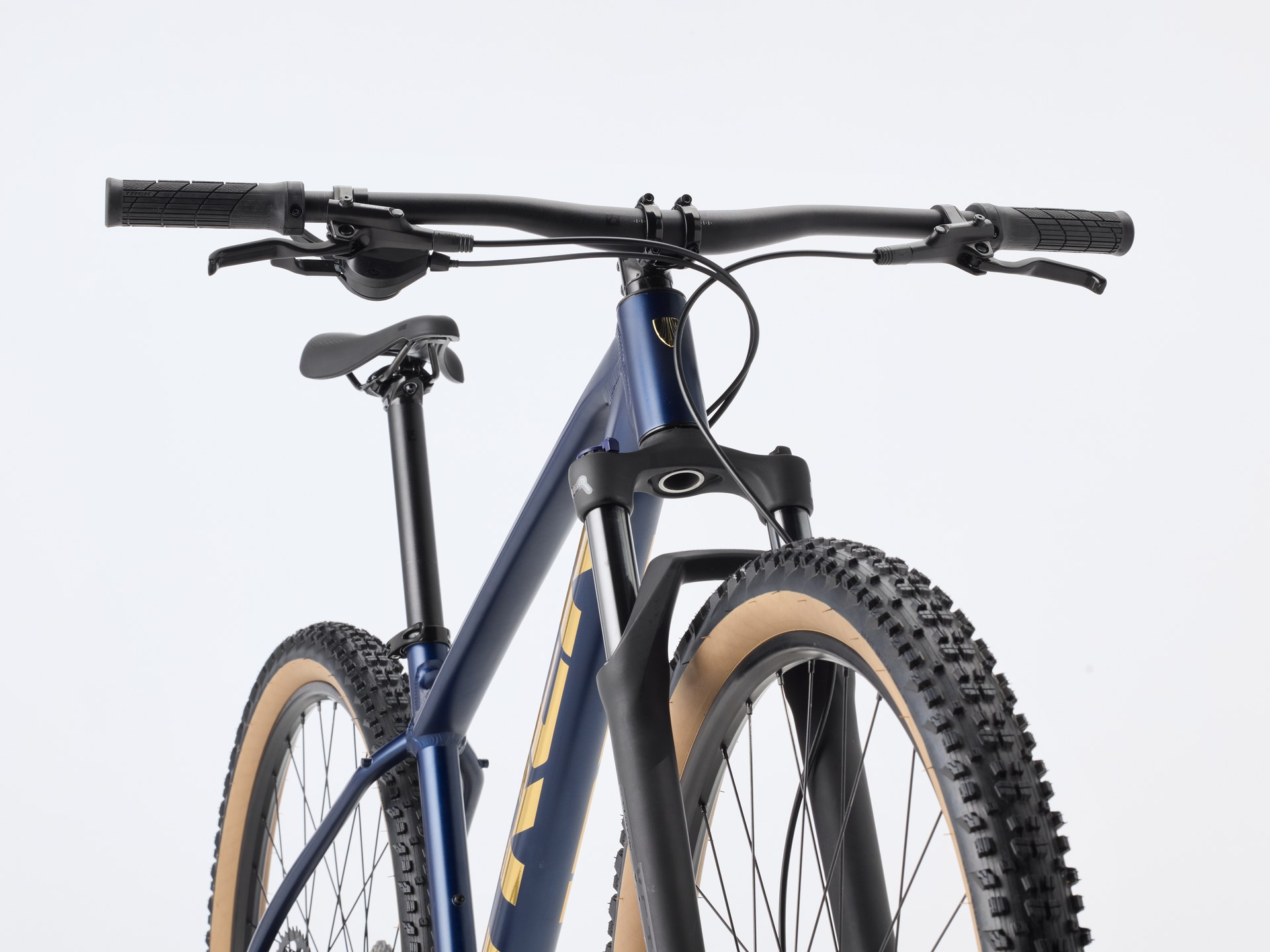

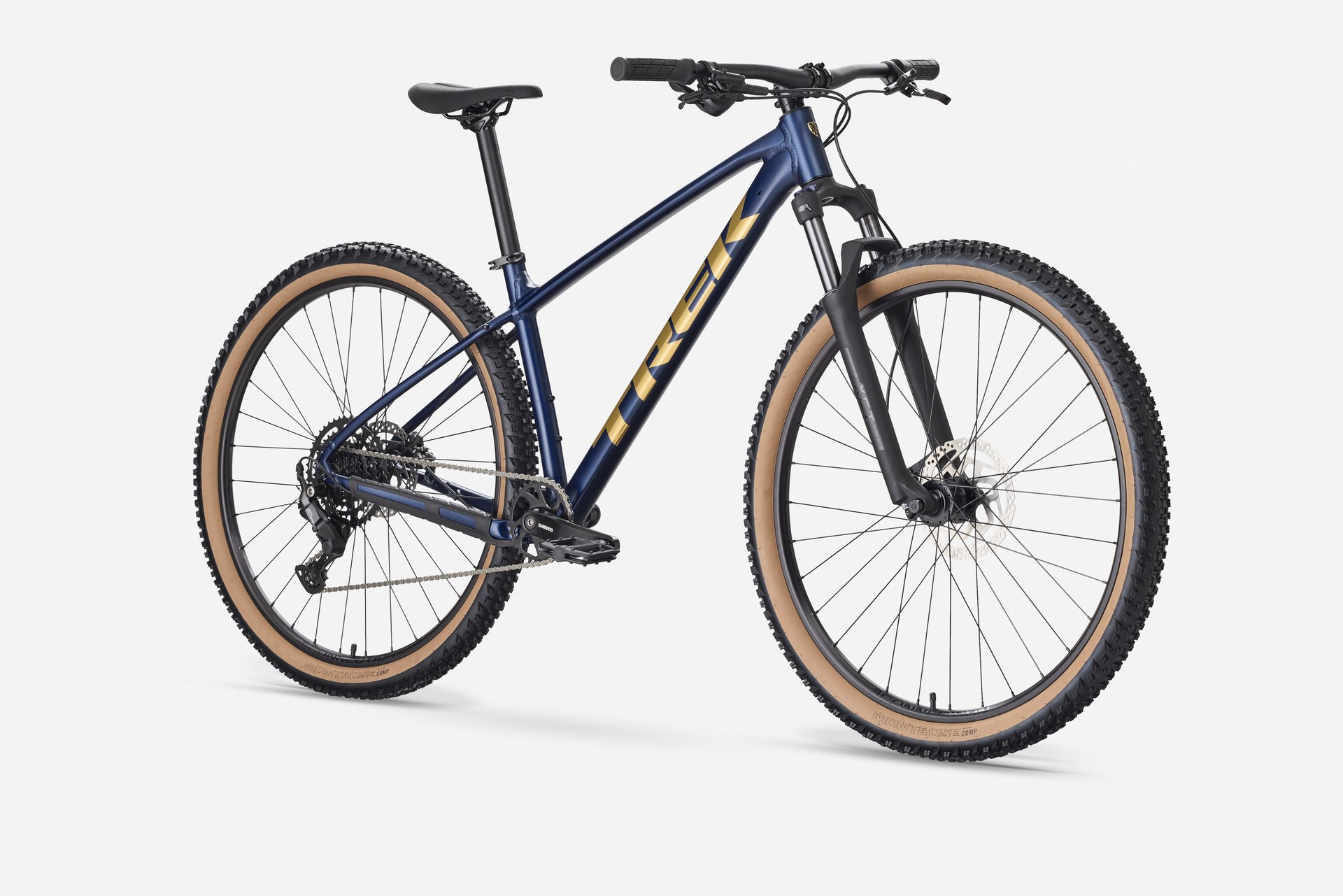

Trek Marlin 5 Gen 3 Mountain Bike - XL - Blue
no reviews for this product. Login to place a review.
Overview
The Trek Marlin 5 Gen 3 is a trail-ready hardtail that also works well for everyday riding. Its stable Alpha Silver Aluminum frame combines a lockout suspension fork, durable Shimano CUES 1x9 shifting, hydraulic disc brakes, and practical mounts for a rack, kickstand, and future dropper post.
- Trail-oriented Gen 3 frame provides stable handling on rough paths and everyday routes
- SR Suntour XCT 30 fork with hydraulic lockout and 100 mm of travel on all target sizes
- Shimano CUES 1x9 drivetrain uses an 11-46T LINKGLIDE cassette for simple, durable shifting
- Shimano MT200 hydraulic disc brakes provide confident speed control
- Internal derailleur and dropper-post routing supports a clean setup and future upgrades
- Rack and kickstand mounts add practical versatility for commuting and errands
In-store pickup: Submit an order request online and our team will confirm availability. Trek bicycles are assembled, inspected, adjusted, and fine-tuned by Uncle Bill's before in-store handover.
Details
- Frame Size
- XL
- Collection
- Marlin
- Product Type
- Mountain Bike
- Model
- Marlin 5 Gen 3
- Colour
- Blue
- Wheel Size
- 29 in
- Gender
- Men
- Material / Finish
- Alpha Silver Aluminum
Specifications
Frameset
- Frame
- Alpha Silver Aluminum, internal derailleur and dropper-post routing, rack and kickstand mounts, 135x5 mm ThruSkew
- Fork
- SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 100 mm quick release, 100 mm travel
Wheels and tyres
- Hubs
- Formula DC-20 alloy front and Formula DC-22 alloy rear, 6-bolt disc
- Rims
- Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Tyres
- Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40 in
- Maximum tyre size
- Frame: 29x2.40 in on M and larger; fork limit follows the fork manufacturer's guidance

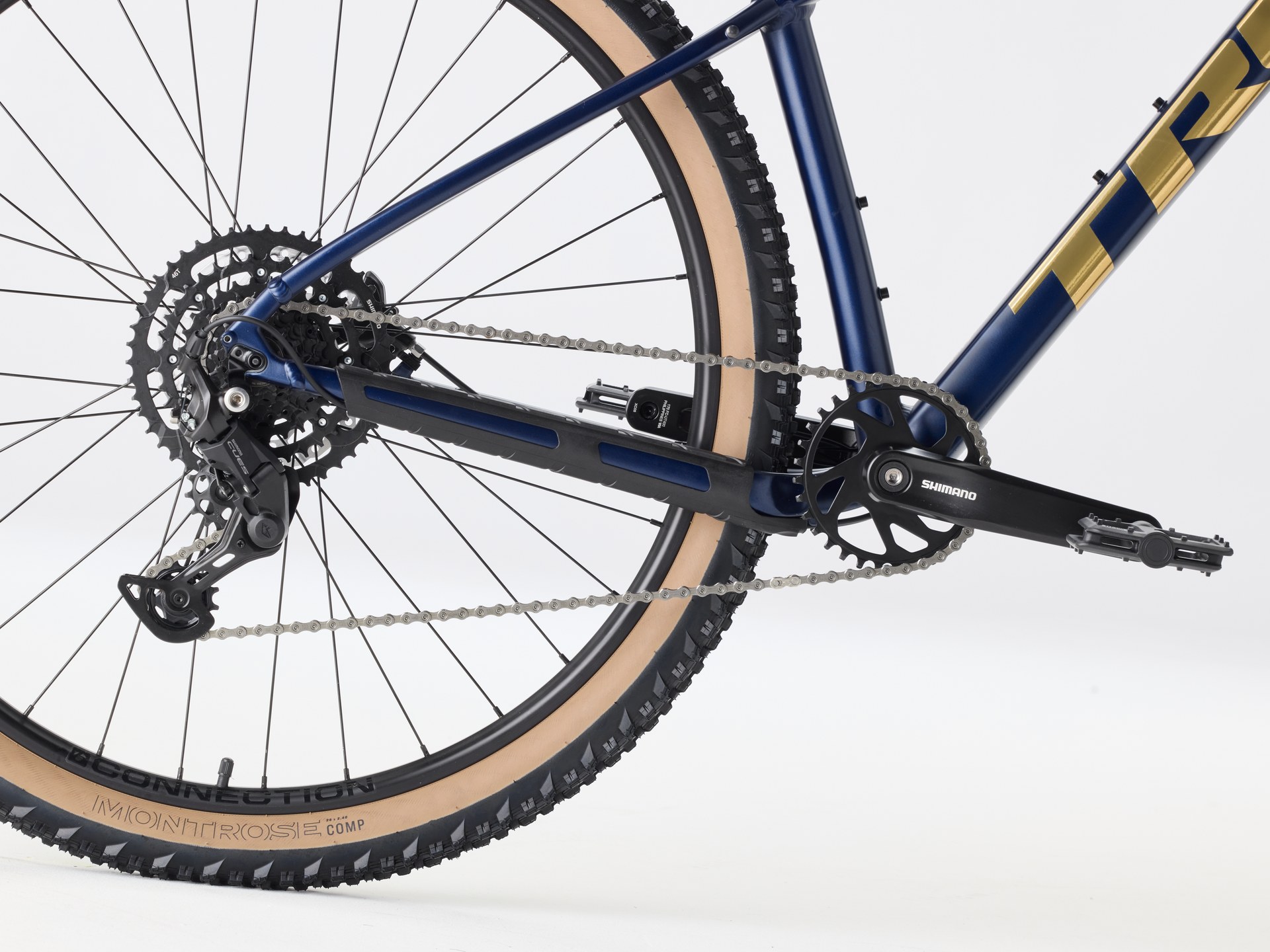

Drivetrain
- Shifter
- Shimano CUES U4000, 9-speed
- Rear derailleur
- Shimano CUES U4000
- Cassette
- Shimano LINKGLIDE LG300, 11-46, 9-speed
- Crankset
- Shimano CUES U4001, 32T, 52 mm chainline
- Chain
- Shimano LG500, 9/10/11-speed
Brakes and contact points
- Brakes
- Shimano MT200 hydraulic disc
- Rotors
- Shimano RT26, 6-bolt; official component list includes 180 mm and 160 mm rotors for M and larger
- Handlebar
- Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
- Saddle
- Bontrager Verse Short, stainless steel rails
Weight and capacity
- Published weight
- 15.10 kg / 33.29 lb in size M
- Maximum total weight
- 136 kg / 300 lb combined bicycle, rider, and cargo
Sizing & fit
Use rider height and inseam as starting points when choosing a frame. Riders near the overlap between two sizes may be comfortable on either, depending on proportions and riding preference. Visit Uncle Bill's if you would like help comparing sizes.
| Frame size | Recommended rider height | Inseam | Wheel size |
|---|---|---|---|
| XS | 145-155 cm / 4 ft 9 in-5 ft 1 in | 69-73 cm / 27-29 in | 27.5 in |
| S | 155-165 cm / 5 ft 1 in-5 ft 5 in | 74-78 cm / 29-31 in | 27.5 in |
| M | 165-177 cm / 5 ft 5 in-5 ft 10 in | 79-83 cm / 31-33 in | 29 in |
| ML | 173-180 cm / 5 ft 8 in-5 ft 11 in | 81-86 cm / 32-34 in | 29 in |
| L | 177-188 cm / 5 ft 10 in-6 ft 2 in | 84-89 cm / 33-35 in | 29 in |
| XL | 188-195 cm / 6 ft 2 in-6 ft 5 in | 89-91 cm / 35-36 in | 29 in |
| 2XL | 195-203 cm / 6 ft 5 in-6 ft 8 in | 91-97 cm / 36-38 in | 29 in |
